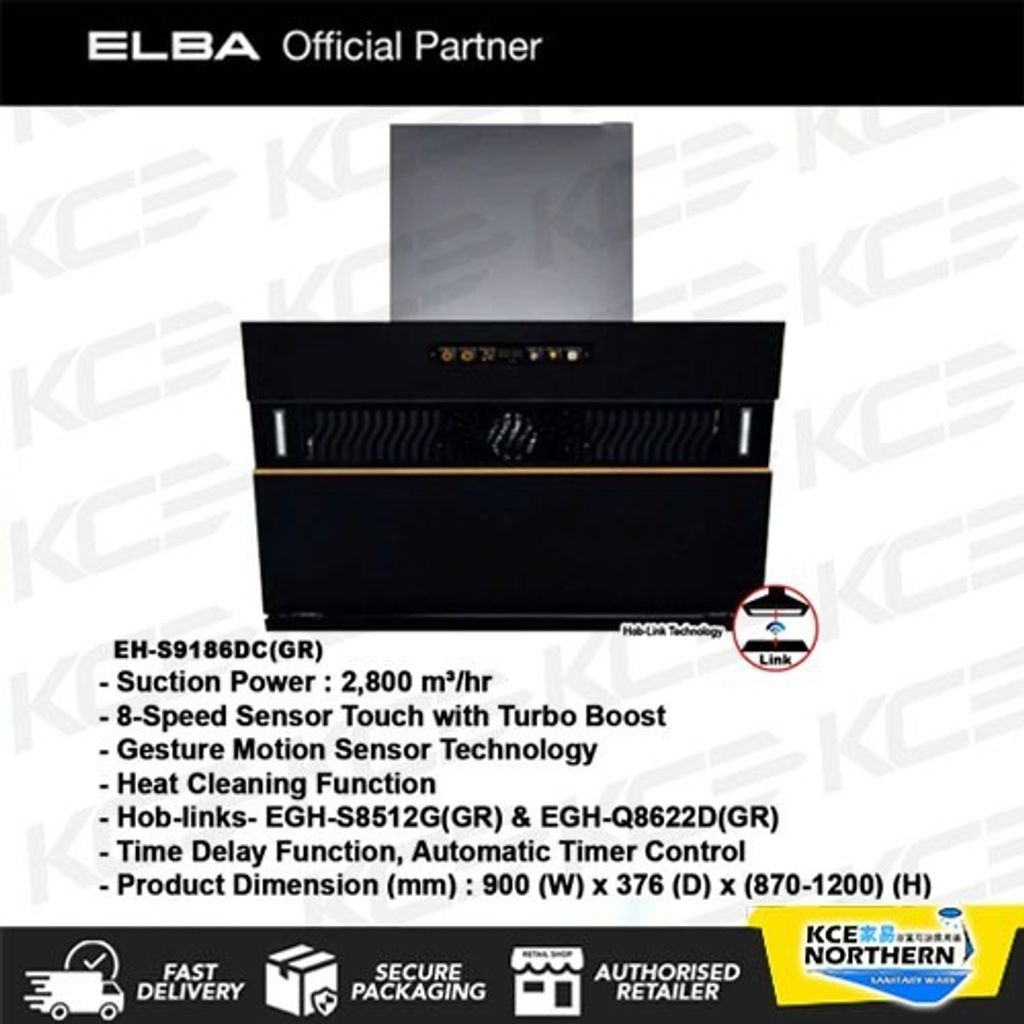

The ELBA EH-S9186DC(GR) is a high-performance designer cooker hood featuring a powerful DC motor and advanced smart features like gesture control and heat cleaning.
Key Specifications
Suction Power: 2,800 m³/hr
Motor Type: BLDC (Brushless DC) Motor

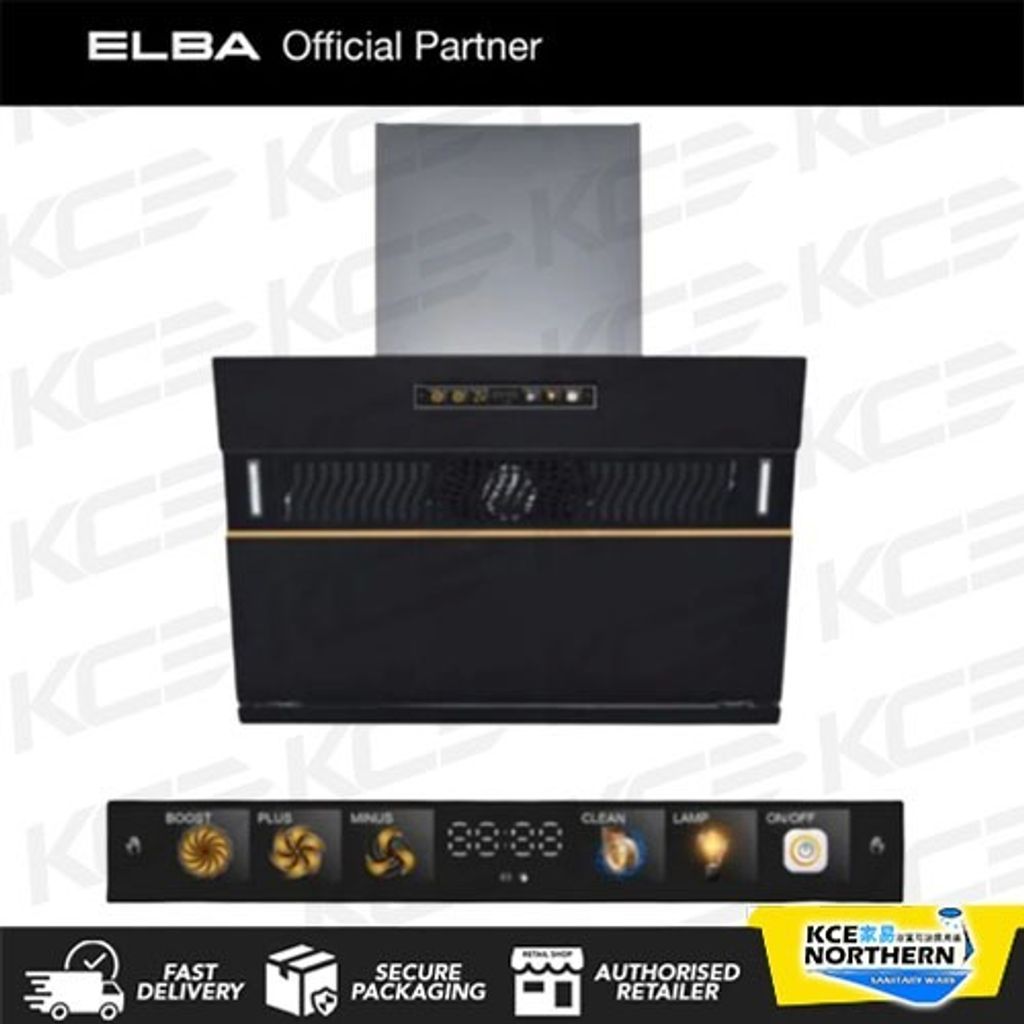

Control Panel: 8-speed sensor touch with Turbo Boost function
Smart Features:
Gesture Motion Sensor: Control the hood with hand waves
Heat Cleaning Function: Simplifies maintenance by melting grease
Filtration: Equipped with a charcoal filter for air recirculation
Design: Matte black tempered glass finishing with a colour panel
Dimensions & Weight

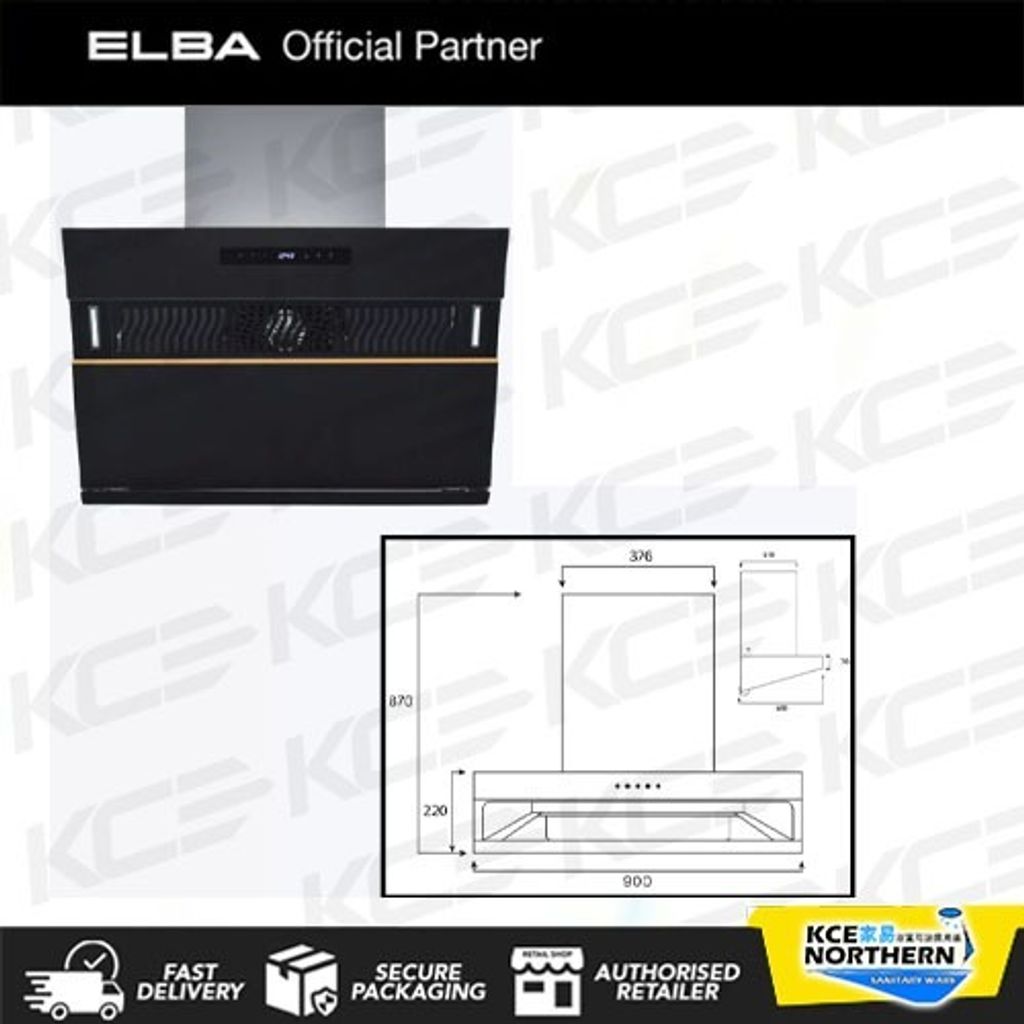

Product Dimensions: 900mm (W) x 376mm (D) x (870–1200)mm (H)
Carton Dimensions: 950mm (W) x 436mm (D) x 590mm (H)
Net Weight: 25.0 kg
Gross Weight: 27.5 kg
Convenience Features
Automatic Timer Control: For set-and-forget operation
Time Delay Function: Allows the hood to run for a short period after cooking to clear remaining smoke

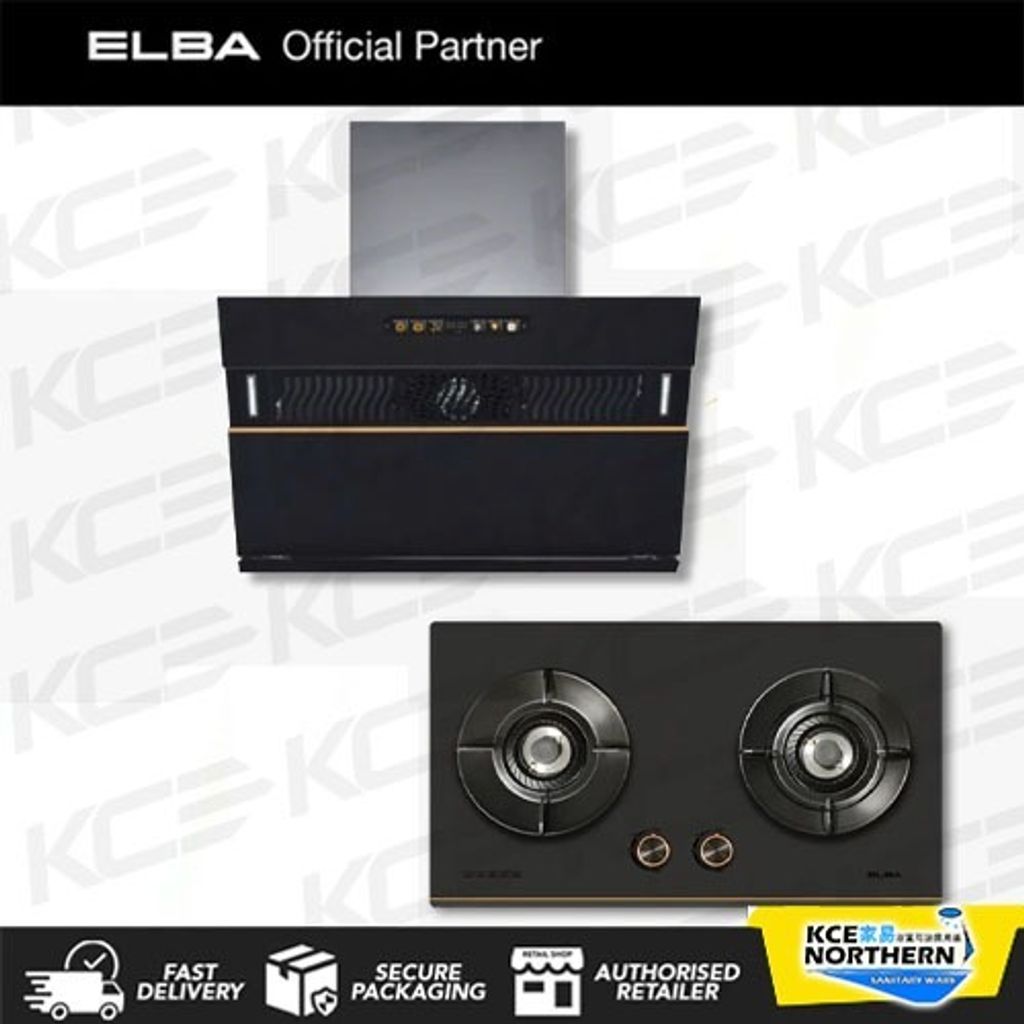

Hob-Link Technology: Compatible with ELBA hobs like the EGH-S8512G(GR) and EGH-Q8622D(GR) for synchronized operation

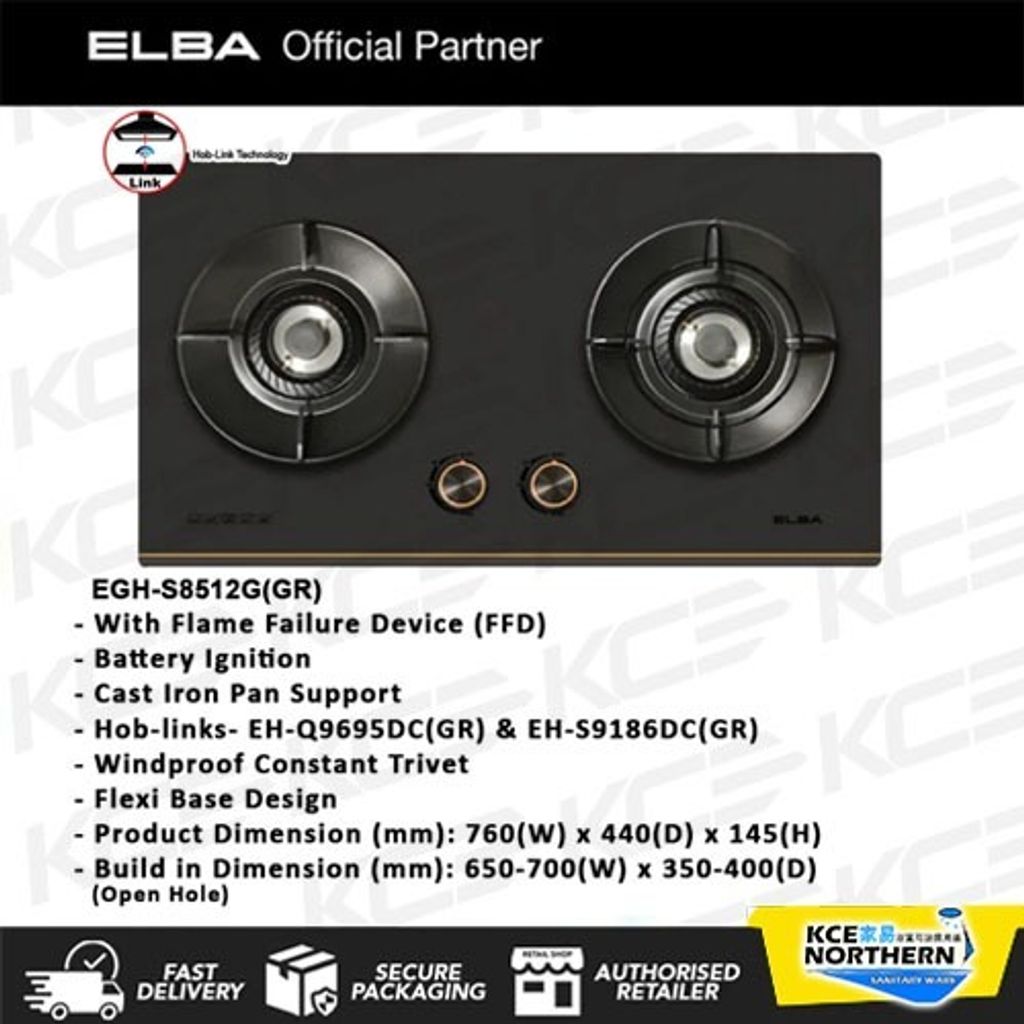

The ELBA EGH-S8512G(GR) is a flexible built-in glass gas hob designed for modern kitchens, featuring a dual-ring burner system and safety technology.
Key Specifications
Burner Configuration: 2 Burners (5.0kW + 5.0kW Dual Ring).
Surface Material: Matt Black Tempered Glass finishing.
Ignition System: Battery Ignition.
Pan Support: Heavy-duty Cast Iron Pan Support with Windproof Constant Trivets.
Safety Features: Equipped with a Flame Failure Device (FFD) that automatically cuts off the gas supply if the flame is accidentally extinguished.
Special Technology: Hob-Link Bluetooth Technology, which allows the hob to sync with compatible Elba Designer Hoods (such as the EH-Q9695DC(GR) or EH-S9186DC(GR)) to automatically activate the hood when cooking starts.
Dimensions & Installation

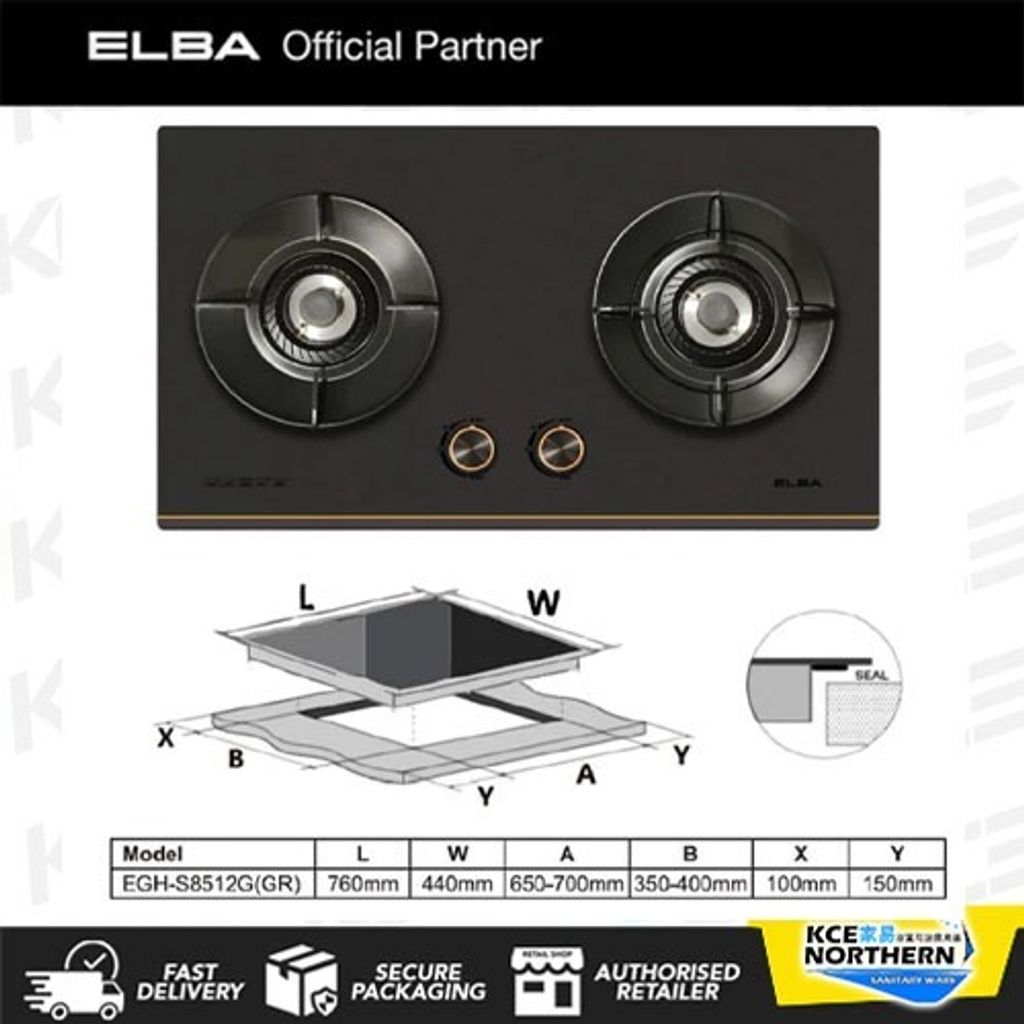

Product Dimensions: 760mm (W) x 440mm (D) x 145mm (H).
Built-in (Cut-out) Dimensions: This model uses a Flexi Base Design, making it suitable for replacement installations within a range of:
Width: 650mm – 700mm.
Depth: 350mm – 400mm.
Weight: Net Weight 11kg / Gross Weight 12.3kg.
Key Specifications
Suction Power: 2,800 m³/hr
Motor Type: BLDC (Brushless DC) Motor
Control Panel: 8-speed sensor touch with Turbo Boost function
Smart Features:
Gesture Motion Sensor: Control the hood with hand waves
Heat Cleaning Function: Simplifies maintenance by melting grease
Filtration: Equipped with a charcoal filter for air recirculation
Design: Matte black tempered glass finishing with a colour panel
Dimensions & Weight
Product Dimensions: 900mm (W) x 376mm (D) x (870–1200)mm (H)
Carton Dimensions: 950mm (W) x 436mm (D) x 590mm (H)
Net Weight: 25.0 kg
Gross Weight: 27.5 kg
Convenience Features
Automatic Timer Control: For set-and-forget operation
Time Delay Function: Allows the hood to run for a short period after cooking to clear remaining smoke
Hob-Link Technology: Compatible with ELBA hobs like the EGH-S8512G(GR) and EGH-Q8622D(GR) for synchronized operation
The ELBA EGH-S8512G(GR) is a flexible built-in glass gas hob designed for modern kitchens, featuring a dual-ring burner system and safety technology.
Key Specifications
Burner Configuration: 2 Burners (5.0kW + 5.0kW Dual Ring).
Surface Material: Matt Black Tempered Glass finishing.
Ignition System: Battery Ignition.
Pan Support: Heavy-duty Cast Iron Pan Support with Windproof Constant Trivets.
Safety Features: Equipped with a Flame Failure Device (FFD) that automatically cuts off the gas supply if the flame is accidentally extinguished.
Special Technology: Hob-Link Bluetooth Technology, which allows the hob to sync with compatible Elba Designer Hoods (such as the EH-Q9695DC(GR) or EH-S9186DC(GR)) to automatically activate the hood when cooking starts.
Dimensions & Installation
Product Dimensions: 760mm (W) x 440mm (D) x 145mm (H).
Built-in (Cut-out) Dimensions: This model uses a Flexi Base Design, making it suitable for replacement installations within a range of:
Width: 650mm – 700mm.
Depth: 350mm – 400mm.
Weight: Net Weight 11kg / Gross Weight 12.3kg.
